How Fiber Optic Plate Solves Image Transmission Challenges in Night Vision Devices
You can get amazing image transmission in night vision devices with HONSUN’s fiber optic plate.
· The fiber optic plate has millions of optical fibers. These fibers break images into small pixels.
· This technology makes sure you get clear image information. Clear images are very important for night vision.
Application Area | Requirements | |
Defense | Needs strong signal quality | Gives fast and steady communication |
Key Takeaways
· HONSUN's fiber optic plate helps night vision work better. It splits images into small pixels. This makes pictures clear and sharp, even when it is dark.
· This technology lowers image distortion and helps things line up right. It lets people see targets clearly and send data without mistakes.
· Fiber optic plates can be changed to fit different needs. They work well and are used in many ways. People use them for night vision, medical imaging, and fingerprint checks.
Image Transmission Challenges in Night Vision
Common Issues in Image Quality
Night vision devices can have many problems. These problems make it hard to see well in the dark. Here are some issues you might face:
· Weak light can cause image degradation. Pictures may look blurry or grainy.
· Outside interference can lower image quality. It gets harder to see clear details.
· If the image is not clear, target recognition is tough. You may not know what objects or people are.
· Night vision devices use special image enhancement technologies. These help improve signal-to-noise ratio and contrast. This makes information transmission more reliable.
These problems show why good transmission matters for night vision technology.
Limits of Traditional Methods
Older night vision devices use traditional ways to send images. These ways often do not fix all image quality problems. The table below shows some main limits:
Limitation | Description |
Image Distortion | Traditional night vision devices often make images look distorted. This affects how clear they are. |
Short Service Life | Older night vision devices do not last long because of design flaws. |
Need for Illumination Sources | Gen 0 night vision technology needed active NIR illumination. This light was not visible to people. It made the devices less useful in some places. |
Better solutions are needed for accurate data and information transmission. Modern fiber optic plates help fix these limits. They give clearer and more reliable information.
Fiber Optic Plate Solutions and Advantages
How Fiber Optic Plate Enables High-Fidelity Transmission
You want your night vision device to show the best images. HONSUN’s fiber optic plate helps by using a smart design. The plate splits the optical image into tiny pixels. Each pixel moves through its own optical fiber. This keeps every detail safe. When the pixels reach the end, they join together again. The picture looks clear and correct. This way works better than old methods. You get high-fidelity transmission, so you do not lose important details.
HONSUN is a leader in optical technology. The company makes fiber optic plates and other products. These include fiber optic inverters, fiber optic cones, AVG, micro-channel array glass panels, micro optical glass parts, fiber couplers, wavelength division multiplexers, isolators, and lasers. These products help with night vision, information collection, image display, medical devices, communication networks, data centers, aerospace, and marine monitoring. You can trust HONSUN for good solutions in many areas.
Reducing Distortion and Improving Alignment
You want your night vision device to show images without distortion. The fiber optic plate uses a hexagonal grid of fibers. This special shape keeps the image straight. Here is how it helps:
· The hexagonal grid lowers distortion when sending images.
· The plate uses integration, sampling, and reimaging to keep things sharp.
· The honeycomb-like shape acts like a thin window, which lowers mistakes.
You get images that look real and lined up. This makes it easier to see details in low light. The fiber optic plate also keeps displacement under 100µm, so you see what is really there.
Efficiency and Customization Benefits
You need a device that works fast and fits your needs. The fiber optic plate is very efficient. It uses fibers as small as 4µm and as big as 200µm. The numerical aperture goes from 0.2 to 1.0. Light transmittance can be up to 65% for collimated light and 57% for Lambertian light. You get bright and clear images every time.
HONSUN lets you pick the fiber optic plate that fits your project. You can choose the size and features you want. The company uses advanced ways to make the plates and checks quality carefully. Special production lines and top inspection tools make sure every plate is great. HONSUN also uses eco-friendly materials, which last longer and need less care.
You can use the fiber optic plate in night vision, fingerprint identification, and medical imaging. It helps send information and collect data in many fields. When you pick HONSUN, you get a product that is reliable, efficient, and made just for you.
Comparing Fiber Optic Technology
Performance vs. Other Solutions
When you look at fiber optic plate technology and older ways to send images, you can see big differences. Fiber optic plates give you much sharper pictures and show more details. The table below shows how fiber optic technology is better:
Metric | Fiber Optic Technology | Traditional Solutions |
Clarity | Superior | Moderate |
Resolution | High | Lower |
Signal-to-Noise Ratio | Improved | Standard |
Light Loss | Minimal | Significant |
Spatial Fidelity | Preserved | Distorted |

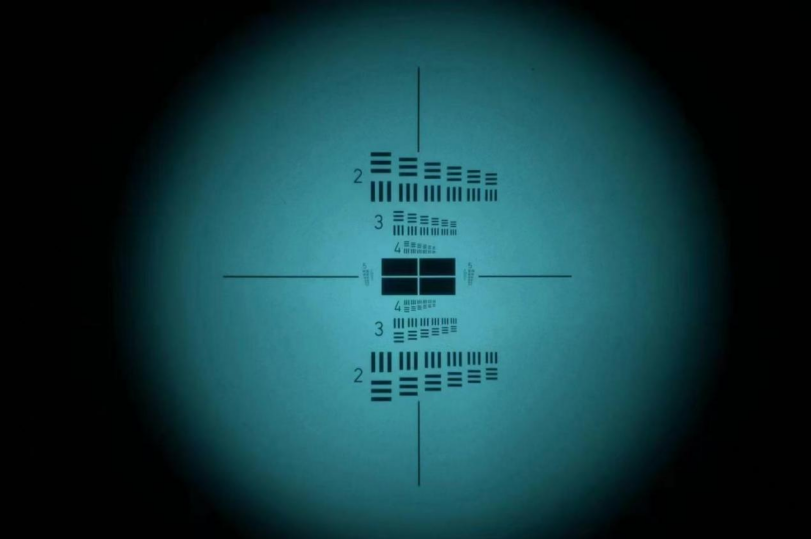

You get pictures that are not bent or twisted. The images have high spatial resolution. Fiber optic plates can reach over 200 lp/mm in resolution. This means you see tiny details and almost no distortion. You also get better color and can see from a wider angle. These things make fiber optic plates the best for night vision and other uses.
Tip: You can find out more about HONSUN’s fiber optic plate products and see how they help send information in real life.
Real-World Benefits for Users
You want your devices to work well every time. Fiber optic plates help you see clear images, even when it is dark. You can spot real details, which helps you make smart choices. The technology keeps your data safe and correct when sending information.
· You see less image bending or mistakes.
· You get the same good results each time.
· You can use fiber optic plates for night vision, fingerprint ID, and medical imaging.
If you want to learn more about how fiber optic technology can help your work, check out HONSUN’s blog on night vision solutions.
You can notice how HONSUN’s fiber optic plate makes images better in night vision devices. The pictures look clear and do not have much distortion. The device also works fast and well. You get these good results because of smart manufacturing and strong technology.
· It is very reliable
· You can use it in many ways
· The company keeps making new improvements
You can look at other products or ask HONSUN for more details or a price.
FAQ
What makes fiber optic plates important for night vision devices?
Fiber optic plates help you see better in the dark. They make images clear, even when there is little light. You can notice more details with them. This helps night vision devices work well and be more accurate.
Can fiber optic plates be used in high-resolution endoscopes?
Fiber optic plates work in high-resolution endoscopes too. They send pictures through small channels. The images stay sharp and easy to see.
How does the fiber optic plate affect data transmission rate?
Fiber optic plates make data move faster. Their design lets image information travel quickly between channels.
