Working Principle of Fiber Optic Faceplate
Light Transmission and Total Internal Reflection
You see the fiber optic faceplate as a device that uses the principle of total internal reflection to transfer light efficiently. When light enters the fiber, it strikes the boundary between the core and the cladding at an angle greater than the critical angle. This causes all the light to reflect back into the core, rather than escaping. The fibers in the faceplate have a core with a higher index of refraction than the cladding. This design ensures that light stays within the core and travels along the fiber. You benefit from this process because it allows the faceplate to transfer signals without loss or distortion.
l Total internal reflection happens when light hits the boundary at a steep angle, so all light reflects back inside.
l The core of each fiber has a higher refractive index than the cladding, which keeps the light contained.
l Light travels through the fibers, guided by total internal reflection, enabling efficient transfer of images and signals.
You rely on this principle to achieve high resolution image transfer in your optical systems. The working principle of a fiber optic faceplate ensures that light moves from one side to the other without scattering. This process supports applications where you need clear and accurate image transfer, such as night vision devices and medical imaging tools. Honsun’s fiber optic plates use advanced materials and precise manufacturing to maximize the efficiency of light transmission.
One-to-One Image Transfer
You experience the one-to-one image transfer mechanism when you use a fiber optic faceplate. The faceplate contains thousands of fibers arranged in a hexagonal grid. Each fiber acts as a channel, transferring light from one end to the other. This arrangement minimizes distortion and preserves the spatial relationship of the image. You can think of each fiber as a pixel in a digital screen. When you place an image on one side of the faceplate, each fiber transfers a small part of the image directly to the other side. This process involves integration, sampling, and reimaging, which ensures that the image remains accurate and clear.
The practical advantages of this mechanism include high fidelity in image transfer and effective performance in low-light conditions. You use fiber optic faceplates as field flatteners and optical coupling devices. These features help you achieve precise image transfer in demanding environments. The working principle of a fiber optic faceplate allows you to capture and relay images with minimal distortion. You see this technology in night vision goggles, scientific instruments, and medical devices. Honsun’s fiber optic faceplates deliver reliable performance, supporting your need for accurate and efficient image transfer.
v Tip: You can visualize the one-to-one image transfer mechanism by imagining a bundle of straws. Each straw carries a piece of the image from one side to the other, keeping the picture intact.
You depend on the fiber optic faceplate for high resolution image transfer in your optical systems. The working principle ensures that every detail of the image is preserved, making it ideal for applications where clarity matters most.

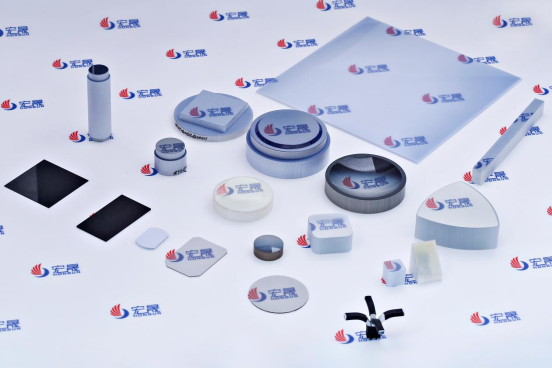

Types of Fiber Optic Plates

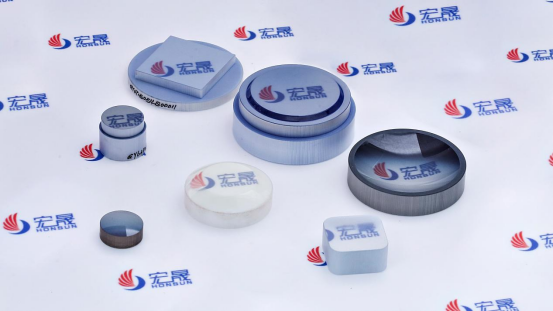

Standard Plates
Standard plates, also called straight fiber optic faceplates, consist of thousands of parallel optical fibers bundled together. These plates transfer images or light directly from one surface to the other without changing size or shape. You use straight fiber optic faceplates when you need precise, one-to-one image transfer. They work well in applications like night vision devices and scientific instruments. Their structure resembles fiber optic cables, where each fiber guides light efficiently. You can explore honsun’s standard fiber optic plates for more details.
Image alt: Standard fiber optic plate showing parallel fiber bundle
Tapered Plates
Tapered fiber optic faceplates differ by gradually changing their cross-sectional area from one end to the other. This tapering either magnifies or reduces the image size. You find tapered fiber optic faceplates useful when you want to couple different-sized optical systems or sensors. Their design helps you focus or spread light efficiently. These plates relate closely to fiber optic cables but with a changing diameter along the length. Check out honsun’s tapered fiber optic faceplates to see various sizes and tapers.
Image alt: Tapered fiber optic faceplate showing size change
Fiber Optic Inverters
Fiber optic inverters, also known as twisted fiber optic faceplates, rotate the image by 180 degrees. You achieve this by twisting the fiber bundle inside the plate. This type helps you invert images without distortion, which is essential in some optical systems like endoscopes or specialized imaging devices. Twisted fiber optic faceplates maintain image quality while changing orientation. You can learn more about these on honsun’s fiber optic inverter product page.
Image alt: Twisted fiber optic faceplate showing image inversion
v Note: Each type of fiber optic plate connects closely to fiber optic cables in how they guide light. You select the right plate based on your application’s size, image orientation, and environmental needs.
Applications of Fiber Optic Plates
Night Vision and Low-Light Imaging
You find fiber optic plates at the core of night vision devices and low-light imaging systems. These plates guide light to the image intensifiers, which amplify faint signals for clear viewing. The integration process involves collimating light before it reaches the photocathode, then converting electrons to visible light on a phosphor screen. This process repeats several times, boosting the signal-to-noise ratio and achieving an overall gain of up to 10,000.
Integration Process | Performance Metrics |
Light collimation by fiber optic plates before impacting a photocathode | Signal-to-noise ratio (SNR) |
Electrons released impact a phosphor screen, emitting green light | Overall gain of 10,000 |
Process repeated three times |
|
You rely on these applications for military, security, and wildlife observation. Performance depends on atmospheric conditions, with moisture sometimes improving penetration, while smoke or dust can reduce effectiveness.
Learn more about night vision applications and see how honsun’s fiber optic plates enhance image quality.
Medical Imaging Devices
You see fiber optic plates play a vital role in medical imaging devices. These plates enable advanced techniques like fluorescence imaging, which helps you achieve high-resolution images during minimally invasive procedures.
l Improved visualization
l Enhanced patient safety
l Increased comfort during examinations
The healthcare industry values these applications for their ability to deliver clear images and support non-invasive diagnostics. Explore honsun’s medical imaging solutions to discover more about their benefits in clinical settings.
Aerospace
You depend on fiber optic plates for critical aerospace. These plates meet strict requirements for ruggedness, lightweight construction, and secure data transmission.
Application | Requirement |
Avionics | |
Missile Guidance Systems | Lightweight materials for fuel efficiency |
Secure Data Transmission | Difficult to intercept signals |
You use these applications in avionics, missile guidance, and secure communications. Honsun’s products support demanding environments where reliability and security matter most. Visit honsun’s aerospace and defense page for more details.
Communication Networks and Data Centers
You rely on fiber optic plates for efficient data transmission in communication networks and data centers. These plates maintain signal integrity and support high bandwidth, which is essential for modern digital infrastructure. You see applications in network switches, routers, and optical transceivers. The demand for secure and fast data transmission continues to grow as industries adopt advanced technologies.
Discover more about fiber optic solutions for data transmission and how honsun’s products power global connectivity.
Industrial and Scientific Uses
You encounter fiber optic plates in industrial inspection, safety monitoring, and scientific research. These applications require high-resolution imaging and reliable data transmission. Industries such as semiconductor manufacturing, biotechnology, and environmental monitoring use these plates to achieve precise results.
l Rising applications in digital radiography and advanced night-vision systems drive market growth.
l Enhanced resolution requirements in semiconductor wafer inspection and biotechnology imaging are key drivers.
You benefit from the durability and versatility of fiber optic plates in challenging environments. For more information, visit honsun’s industrial and scientific applications page.
v Tip: You can explore more about the applications of fiber optic faceplates and related technologies in our blog section.
Advantages
l high resolution: fiber size 3μm-192lp/mm, 4μm-144lp/mm, 6μm-96lp/mm;
l "Zero" optical distance: Output image from one end to the other end of the FOP;
l N.A.: 0.1-1.0, high transmission efficiency, low distortion;
l Simple and miniaturized optical design.
